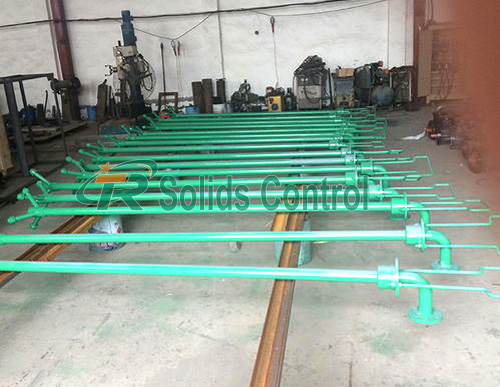

Standard Oilfield Drilling Solids Control Low Pressure Mud Gun
Main Introduction
The mud gun in the mud system can also be used for transfer mud from compartment to compartment, like for trip tank compartment. TR Mud Guns are available for rotation adjustment to allow the operator to optimize the mud guns performance. The replaceable wear resistant jet nozzle is used, which is special design with better shearing.
Mud gun is a specialized tool for preventing mud deposition which is conducive for TR driller-mud fixed control system. It is widely used in the recovery system of drilling mud. Power of source of the mentioned device derives from reflux system or low-pressure sand pump of drilling mud pump. It features in simple structure, flexible operation, convenient application, making itself an ideal anti-deposition device of mud fixed control system.
TRNJQ series Mud Gun is designed for solids control system in drilling process. It is one kind of special tool which is mainly used in the drilling mud circulation system and prevents the mud precipitates. The structure of mud gun is simple, flexible operation and easy using. Mud gun is the ideal equipment to guard against the precipite in mud tank for fluids processing system.
Design Advantages of TR Drilling Mud Gun
- Jet nozzle is both replaceable and wearable.
- Adopts high-speed jet nozzle, with strong stirring and shearing function.
- Can be 360° all-round rotation, easy to operate.
- Flexible on configuration of size and pressure rates.
- Discharge nozzle are made from polyurethane material, with long service life.
Technical Parameters of TRNJQ Series Mud Gun
| Model | TRNJQ50-3 | TRNJQ50-3X | TRNJQ80-3 | TRNJQ80-3X |
| Diameter | 50mm | 50mm | 80mm | 80mm |
| Working Pressure | ≤6.4MPa | ≤3.2MPa | ≤6.4MPa | ≤3.2MPa |
| Nozzle No. | 1/3e |
| Rotation Angle | N/A | 360° | N/A | 360° |
About the seller: what should we do?
1.Before signing the contract, we have determined the product pictures. Once the customized products are confirm, they cannot be return.
2.Before prepaying 70% of the final payment, we provide the pictures of the official goods. Please check carefully, compare the physical objects and parameters repeatedly, or send them to the end user for confirmation, to avoid wrong delivery. If the wellhead tools or parts are not inspected, wrong delivery of bop parts, and reissue, we need to place another new order. Wellhead equipment parts are conventional products, please give us the parts number, if u book rubber, we can provide the drawings for verification. After the review and confirmation, we will Seal case to Shanghai port.
3.The warranty period of our product is one year. Please open the box for use as soon as possible within one year. Other iron accessories can be stored for 2-3 years, but we suggest you use them as soon as possible. The warranty period is one year.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
