Hot Selling Mud Gas Separator For Solids Control System / Poor Boy Degasser
Introduction
Mud gas separator serves as an ideal device if well blowout or kick is encountered or if operators apply under-balanced mud column in drilling processes. TRZYQ series Mud Gas Separator is primarily used to remove the enormous free gas from drilling fluids, including poisonous gases like H2S. Field data shows it is a fairly reliable and vital safety equipment.
Mud gas separator is mainly used to remove the big bubbles with the diameter of about ≥Φ3mm. Most of these bubbles are the expanded gas filled in the drilling fluid in the annular of wellbore, which might cause well kick if not to remove it timely.
TRZYQ series mud gas separator combined with the Flare Ignition Device can be used together to ensure the drilling process smoothly. Our separator is divided into normal pressure separator and pressure auto-control separator according to the pressure.
Application
TRZYQ Series Mud Gas Separator is mainly used to remove the enormous free gas from drilling fluids, including poisonous gases like H2S. Currently it is widely used in Drilling Waste Management, oil & gas drilling, trenchless HDD, city bored piling, Coal Bed Gas Solids Control System, Oil Mud Seperation, mining, Oil Sludge Dewatering Systems, Water Drilling, environment protection etc.
Advantages of TRZYQ Series Mud Gas Separator
- Efficient degassing performance.
- Separated gas is carried by discharge lines to safe area for combustion.
- Versatile Configuration. Flow line adjustments can be raised or lowered to minimize piping.
- Skid-Mounted and Trailer Transportable. Simplifying transport, spotting and installation.
- Separates free gas accumulations especially toxic gases from drilling mud system.
- Fail-safe gas delivery can be controlled by a back-pressure manifold valve in the flare line.
Technical Data of TRZYQ Series Mud Gas Separator
| Model | TRZYQ800 | TRZYQ1000 | TRZYQ1200 |
| Capacity | 180 m³/h | 240 m³/h | 320 m³/h |
| Main Body Diameter | 800mm | 1000mm | 1200mm |
| Inlet Pipe | DN100mm | DN125mm | DN125mm |
| Output Pipe | DN150mm | DN200mm | DN250mm |
| Gas Discharge Pipe | DN200mm | DN200mm | DN200mm |
| Weight | 1750kg | 2235kg | 2600kg |
| Dimension | 1900*1900*5700mm | 2000*2000*5860mm | 2200*2200*6634mm |
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
Product Tags:
|
|

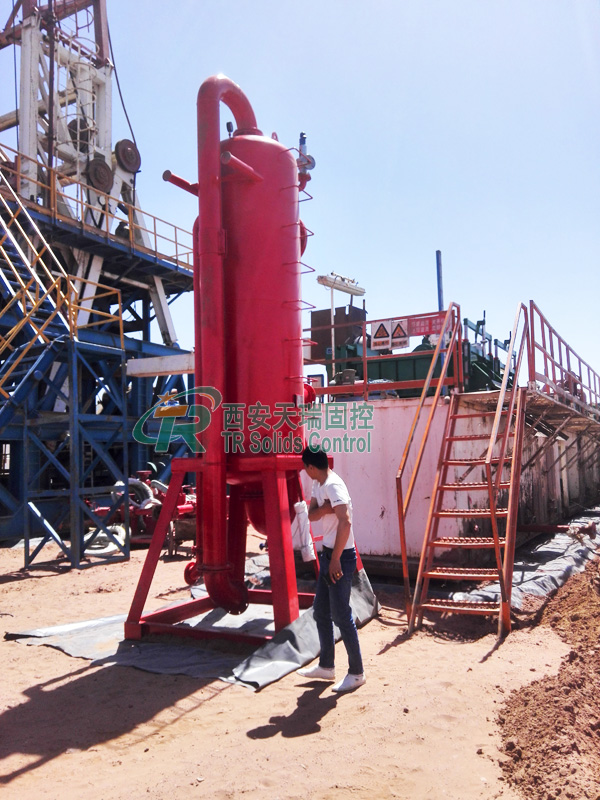

2235KG Poor Boy Gas Separator / Poor Boy Degasser for Solids Control System Images
|
